Jaw Plates
OEM tailor design
Product name: Jaw plate/Swing Jaw Plate/Fixed Jaw Plate/Movable Jaw Plate/Jaw Crusher Liners
Production process: Casting
Applicable machines: Jaw crushers
Material types: High manganese steel, high manganese steel ｉｎｓｅｒｔ alloy bars, high manganese steel + hard facing layer, high chromium cast iron, alloy steel, etc.
Applicable industries: mining, cement plants, coal, steel, etc.
Our service:
1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.
2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After sales, we will continue to pay attention to the usage of the product and provide timely help.
If you need detailed technical information of the product or cannot find the product you need on the website, please email us（cnwearparts@lyzhili.com）, because we are a customized factory for crusher spare parts.
Our Jaw plates are cast from the highest grade of ferro Manganese, to provide the hardest composition for maximum wear resistance. We offer a wide variety of tooth profiles & surface shapes to best suit your crushing needs.

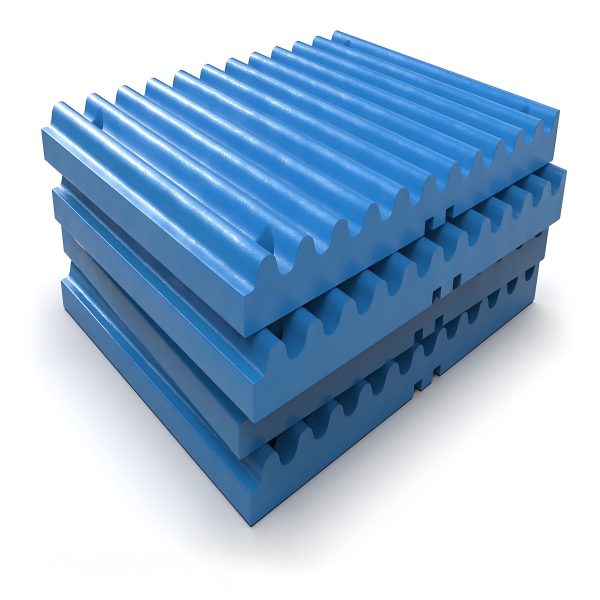

The jaw plate is a key wear-resistant spare part in the jaw crusher. A set of jaw plates consists of a movable jaw plate and a fixed jaw plate.
The materials of high manganese steel Jaw plates include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 ｉｎｓｅｒｔ tungsten-molybdenum alloy bars and surface surfacing wear-resistant alloys.
Applicable working conditions: Suitable for cement plant, stone factories and other rocky places with poor conditions.
Zhili New materials jaw plates have the following features:
1.Designed for maximum operational flexibility;
2.Maximize uptime;
3.Reduce wear;
4.Optimize production;
5.Extend service life.
Chemical component
Grade | Chemical component% | |||||
|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | S | P | |
| ZG120Mn13 | 1.05~1.35 | 0.3~0.9 | 11~14 | - | ≤0.06 | ≤0.04 |
| ZG120Mn13Cr2 | 1.05~1.35 | 0.3~0.9 | 11~14 | 1.5~2.5 | ≤0.06 | ≤0.04 |
| ZG120Mn17Cr2 | 1.05~1.35 | 0.3~0.9 | 16~19 | 1.5~2.5 | ≤0.06 | ≤0.04 |
| 1：Allowed to add microscale V,Ti,B and Re etc. 2：We can produce the other grade high manganese steel hammer according to customers’ requirments 。 | ||||||
Mechanical Property
Grade | Stretch property | Hardness HB | |||
|---|---|---|---|---|---|
| yield strength ReH/Mpa | tensile strength Rm/Mpa | Elongation at cross section % | Shock absorption energyKu2J | ||
| ZG120Mn13 | - | ≥685 | ≥25 | ≥118 | ≤300 |
| ZG120Mn13Cr2 | ≥390 | ≥735 | ≥20 | - | ≤300 |
We use proper alloying and and related technological measures to make High chromium iron Jaw plates’surface hardness reaches more than 58HRC , during the process of wearing will maintain high hardness and high wear resistance.
Applicable working conditions: Suitable for making wearable spare parts with lower impact load and simpler shape.
Chemical component
Grade | Chemical component% | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | Mo | Ni | Cu | S | P | |
| BTMCr15 | 2.0~3.3 | ≤1.2 | ≤2.0 | 14~18 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| BTMCr20 | 2.0~3.3 | ≤1.2 | ≤2.0 | 18~23 | ≤3.0 | ≤2.5 | ≤1.2 | ≤0.06 | ≤0.10 |
| BTMCr26 | 2.0~3.3 | ≤1.2 | ≤2.0 | 23~30 | ≤3.0 | ≤2.5 | ≤2.0 | ≤0.06 | ≤0.10 |
| 1：Allowed to add microscale V,Ti,Nb,B and Re etc. 2：We will choose grade and specific component according to blow bars’ weight ,thickness and sizes | |||||||||
Mechanical Property
Grade | Surface Hardness | |||||
|---|---|---|---|---|---|---|
Casting condition | Harded condition | Softening annealing condition | ||||
| HRC | HB | HRC | HB | HRC | HB | |
| BTMCr15 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
| BTMCr20 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
| BTMCr26 | ≥46 | ≥450 | ≥58 | ≥650 | ≥41 | 400 |
1：There are no exact corresponing value between rockwell hardness(HRC) and brine hardness(HB),so ,this two kind of hardness value can be inspend used 。 | ||||||
Alloy steel jaw plate is a widely used at present. It has relatively high hardness and appropriate toughness which is enough to resist the fluid wear and repeated impact of the material, so it shows good wear resistance performance.
Applicable working conditions: Widely used in Cement, Quarry and Mining plants
